Spring-Loaded Locating Pin Captive Panel Fasteners

SKU: CPF08 Categories: ,

Spring-Loaded Self Clinch Locating Pin Captive Panel Fasteners host an unthreaded locating pin as opposed to a threaded captive panel screw.

They provide quick installation and removal of parts without the need for additional tools, and are often used to reposition hardware such as racks, consoles and access panels.

These spring-loaded plunger assemblies are typically supplied with a locking mechanism that secures the plunger in its fully retracted position. To engage the mechanism, simply retract the plunger and twist.

The knurled self-clinching feature permanently attaches these fasteners to thin Steel and Aluminium sheets. This requires sufficient squeezing force to be applied using a press which displaces material from the panel into the undercut and around the knurls.

Spring-Loaded Self Clinch Locating Pin Captive Panel Fasteners are intended for use in sheet hardness HRB 80 or less on the Rockwell B scale, or HB 150 or less on the Brinell scale.

Their design ensures that the reverse side of the sheet is flush when the plunger is fully retracted.

The plunger and retainer are made from Hardened Carbon Steel with a Nickel plated finish, while the spring is made from 300 Series Stainless Steel.

Available at Fastenright in metric and imperial measurements. Locating Pin Panel Fasteners without the locking mechanism can also be supplied.


Imperial Sizes

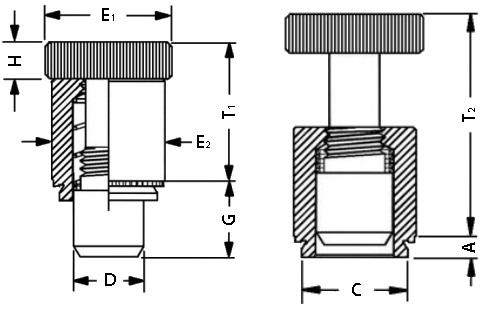

Metric Technical Data & Availability
Type With Locking Feature Without Locking Feature
A max. (mm) 1.47 1.47
Min. Sheet Thickness (mm) 1.53 1.53
C max. (mm) 8.31 8.31
Sheet Hole Size (mm) + 0.08 8.33 8.33
D (mm) – 0.13 6.35 6.35
Min. Mating Hole Diam. (mm) 6.38 6.38
E1 (mm) ± 0.25 12.7 12.7
E2 (mm) ± 0.25 10.3 10.3
G (mm) ± 0.25 7.87 7.87
H (mm) ± 0.25 4.32 4.32
T1 (mm) ± 0.25 15.11 12.95
T2 nom. (mm) 22.73 19.81
Min. Dist. Hole to Edge (mm) 8.64 8.64



Imperial Technical Data & Availability
Type With Locking Feature Without Locking Feature
A max. (in.) 0.058 0.058
Min. Sheet Thickness (in.) 0.060 0.060
C max. (in.) 0.327 0.327
Sheet Hole Size (in.) + 0.003 0.328 0.328
D (in.) – 0.005 0.250 0.250
Min. Mating Hole Diam. (in.) 0.251 0.251
E1 (in.) ± 0.010 0.500 0.500
E2 (in.) ± 0.010 0.406 0.406
G (in.) ± 0.010 0.310 0.310
H (in.) ± 0.010 0.170 0.170
T1 (in.) ± 0.010 0.595 0.510
T2 nom. (in.) 0.895 0.780
Min. Dist. Hole to Edge (in.) 0.340 0.340
Please make full use of our Fastener rotation by left-clicking and dragging to rotate, and using the mouse wheel to zoom in or out.
For display only, visuals may differ.
