Micro Pozi Pan Thread Rolling Screw (DIN 7500)

A Micro Pozi Pan Thread Rolling screw is created to DIN 7500 standard. They are a high speed, cost-effective self-threading fastener, often used in the automotive industry to tap their own threads into sheet metal.

As the Thread Rolling screw taps its own thread when applied to the application it forms a regular thread in the material – which can be metric or imperial depending on the screw – reducing strip out problems and providing high resistance to vibration. This feature improves the speed of assembly achieved through lower driving torque, thus reducing operator fatigue and improving the cost-effectiveness.

Although pre-tapped holes are not required, Thread Rolling screws can be used in pre-tapped holes.

The Micro Pozi Pan Thread Rolling screw is manufactured in A2 Stainless Steel and Mild Steel, with other materials and grades available to order.

Available from Fastenright in thread diameters from M1.4 to M3 with lengths ranging from 3mm to 30mm.

Non-standard sizes, materials and finishes are available to order as specials, including small volume manufacture, modifications and custom parts made to drawings.Pozi-Pan-Thread-Rolling-Screw-Din-7500-Dim

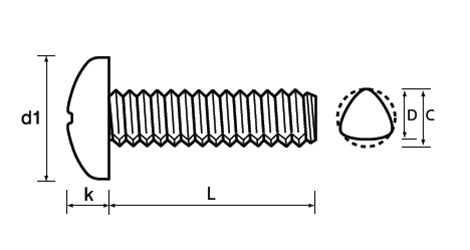

Metric Technical Information & Available Sizes
Thread Diameter M1.4 M1.7 M2 M2.5 M3
d1 (mm) 2.5 3.0 3.5 3.5 4.0
k (mm) 0.8 0.9 1.0 1.0 1.1
Available Sizes M1.4 M1.7 M2 M2.5 M3
3mm black icon image black icon image
4mm black icon image black icon image black icon image
5mm black icon image black icon image black icon image black icon image black icon image
6mm black icon image black icon image black icon image black icon image black icon image
8mm black icon image black icon image black icon image
10mm black icon image black icon image black icon image
12mm   black icon image black icon image
16mm   black icon image black icon image
20mm black icon image
25mm black icon image
30mm black icon image
black icon image = Available
Size not listed? Please make an enquiry – we may be able to provide it.
