Rivet Nut Closed End Flange Head Hex Body

SKU: RN19 Categories: ,

These closed end, flange head and hex body rivet nuts are typically used where the threat of moisture or contamination into the product must be prevented – meaning the rivet nut must be corrosion resistant.

This rivet nut and it’s flange head make it suitable for load bearing applications, as well as having a hexagonal body to reduce the problem of the nut turning post-installation

Rivet Nut Closed End Flange Head Hex Body fasteners are manufactured in Zinc Plated Steel, A2 Stainless Steel and A4 Stainless Steel as standard.

Available from Fastenright in sizes M3 to M12 as standard.

Non-standard sizes, materials and finishes are available to order as specials, including small volume manufacture, modifications and custom parts made to drawings.

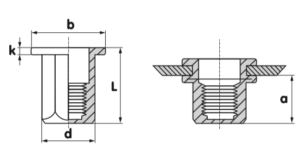

rivet-nut-closed-end-flange-head-hex-body-technical-drawing

Metric Technical Information & Available Sizes
Thread Diameter Grip Range
(mm)
Hole A/F
(mm)
Body A/F
(mm)
Head Diameter
b (mm)
Head Thickness
k (mm)
Length
L (mm)
Availability
M3 0.5 – 2.5 4.9 4.8 8.0 0.75 15.5 yellow triangle icon imageblack icon imageblue icon image
M4 0.5 – 3.0 5.9 5.8 9.3 1.0 16.5 yellow triangle icon imageblack icon imageblue icon image
M4 0.5 – 2.5 6.1 6.0 9.0 1.0 17.0 yellow triangle icon imageblack icon image
M5 0.5 – 3.0 7.1 7.0 10.0 1.0 19.0 yellow triangle icon imageblack icon image
M5 0.5 – 3.0 6.9 6.8 10.3 1.0 19.0 yellow triangle icon imageblack icon imageblue icon image
M6 0.5 – 3.0 8.9 8.8 12.3 1.5 22.0 yellow triangle icon imageblack icon imageblue icon image
M6 0.5 – 3.0 9.1 9.0 12.0 1.5 22.5 yellow triangle icon imageblack icon image
M8 0.5 – 30 11.1 11.0 15.0 1.5 25.0 yellow triangle icon imageblack icon image
M8 0.5 – 3.0 10.9 10.8 14.3 1.5 26.5 yellow triangle icon imageblack icon imageblue icon image
M10 0.5 – 3.0 12.9 12.8 16.3 2.0 28.5 yellow triangle icon imageblack icon imageblue icon image
M10 0.5 – 3.0 13.1 13.0 17.0 1.5 30.0 yellow triangle icon imageblack icon image
M12 3.0 – 6.0 15.9 15.8 23.0 2.0 33.5 yellow triangle icon imageblack icon imageblue icon image
yellow triangle icon image = Zinc Plated Steel
black icon image = A2 Stainless Steel // blue icon image = A4 Stainless Steel
Size not listed? Please make an enquiry – we may be able to provide it.
