Hex Socket Cap Thread Rolling Screws (DIN 912)

SKU: TH07 Categories: ,

Hex Socket Cap Thread Rolling Screws, typically in accordance with DIN 912 standard / ISO 4762, host a cylindrical style head with a hexagonal drive recess – fastened using a standard hex wrench or insert bit.

These components are intended for use with sheet metals and other malleable materials. Thread rolling screws can be driven into a pilot hole without the need for thread tapping as a separate process.

They host a unique three-lobe or trilobular thread design. During installation, thread rolling screws form their own threads and pushes excess material into relief areas of the screw.

This increases resistance to vibration and reduces the chance of the screw becoming loose. Using an extruded hole may provide additional length and improve retention.

Thread Rolling screws also help to avoid loose chips that are caused by other thread cutting processes.

DIN 912 Hex Socket Cap Thread Rolling Screws are manufactured from Steel Zinc Plated as standard, with and Steel Black Plated available on request.

Available at Fastenright in thread sizes M4 to M8, with lengths up to 50mm.

Non-standard sizes, materials and finishes are available to order as specials, including small volume manufacture, modifications and bespoke parts made to drawings. Minimum order quantities apply.

Fastenright supply a wide range of Thread Rolling Screws.

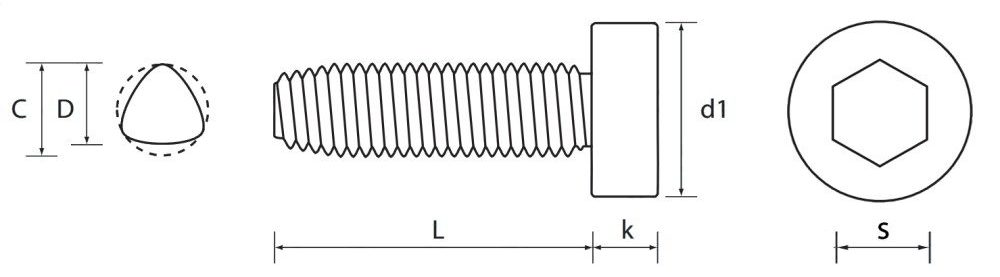

Hex Socket Cap Thread Rolling Screw Technical Drawing

Metric Technical Data & Availability
Thread Diameter M4 M5 M6 M8
d1 max. (mm) 7 8.5 10 13
k max. (mm) 4 5 6 8
S (mm) 3 4 5 6
Available Lengths (L) M4 M5 M6 M8
8mm black icon imageblack icon image black icon imageblack icon image
10mm black icon imageblack icon image black icon imageblack icon image black icon imageblack icon image
12mm black icon imageblack icon image black icon imageblack icon image black icon imageblack icon image
16mm black icon imageblack icon image black icon imageblack icon image black icon imageblack icon image black icon imageblack icon image
20mm black icon imageblack icon image black icon imageblack icon image black icon imageblack icon image black icon imageblack icon image
25mm black icon imageblack icon image black icon imageblack icon image black icon imageblack icon image black icon imageblack icon image
30mm black icon imageblack icon image black icon imageblack icon image black icon imageblack icon image
35mm black icon imageblack icon image
40mm black icon imageblack icon image black icon imageblack icon image
50mm black icon imageblack icon image black icon imageblack icon image
black icon image = Steel Zinc Plated // black icon image = Steel Black Plated (may have increased lead times)
Size not listed? Please make an enquiry – we may be able to provide it.
Please make full use of our Fastener rotation by left-clicking and dragging to rotate, and using the mouse wheel to zoom in or out.
For display only, visuals may differ.
