Rivet Nut Flange Head Plain Closed End Body

Rivet Nut Flange Head Plain Closed End Body fasteners are typically used to prevent contamination or moisture entry into a product.

These rivet nuts, also commonly know as Rivnuts, Blind Nuts, Thin Sheet Nuts and Nutserts, are ideal for use in a tube or box sections, as well as some sheet materials.

The flange head reinforces the hole and provides increased or improved resistance.

Available from Fastenright in sizes from M4 to M10 as standard.

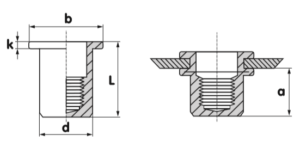

Non-standard sizes, materials and finishes are available to order as specials, including small volume manufacture, modifications and custom parts made to drawings.Rivet-Nut-Flange-Head-Plain-Closed-End-Body-Technical-Drawing

Metric Technical Information & Available Sizes
Thread Diameter Grip Range
(mm)
Hole A/F
(mm)
Body A/F
(mm)
Head Diameter
b (mm)
Head Thickness
k (mm)
Length
L (mm)
M4 0.5 – 2.5 6.1 6.0 9.0 1.0 17.0
M5 0.5 – 3.0 7.1 7.0 10.0 1.0 19.0
M6 0.5 – 3.0 9.1 9.0 12.0 1.5 22.5
M6 3.0 – 5.0 9.1 9.0 12.0 1.5 25.0
M8 0.5 – 3.0 11.1 11.0 15.0 1.5 25.0
M8 3.0-5.5 11.1 11.0 15.0 1.5 27.5
M10 1.0-3.5 13.1 13.0 17.0 2.0 28.5
Size not listed? Please make an enquiry – we may be able to provide it.
