Pin Pentagon Countersunk Security Machine Screw

Pin Pentagon Countersunk Security Screws are tamper resistant and can only be removed through the use of special bits that only fit the specific drive.

These screws stop vandals or thieves from purchasing standard security bits in tool shops, as the security machine screws offer high security due to the tool required.

At Fastenright, we only supply the tools to customers who have purchased the screws from us as an added security measure.

Due to the countersunk head, the machine screw will sit flush in the surface of the material it’s placed in. They’re also typically used to be covered by a cap or piece of wood – thus improving the security features of the screw.

Often used to maintain security in retail, computers, public transport and more, these parts are becoming more and more popular.

Non-standard sizes and materials are available to order as specials, including custom parts made to drawings.

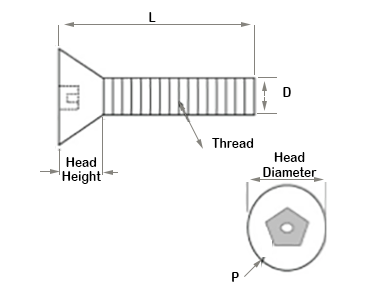

Pin Pentagon Countersunk Security Machine Screws Technical Drawing

Metric Technical Information & Available Sizes
Thread Diameter M3 M4 M5 M6 M8
Head Diameter (mm) 5.7
7.7
9.8 11.8
15.1
Head Height (mm) 1.7 2.3 2.8
3.3 5.0
Available Sizes M3 M4 M5 M6 M8
6mm black icon image
8mm black icon image black icon image black icon image black icon image
10mm black icon image black icon image black icon image black icon image black icon image
12mm black icon image black icon image black icon image black icon image black icon image
16mm black icon image black icon image black icon image black icon image black icon image
20mm black icon image black icon image black icon image black icon image black icon image
25mm black icon image black icon image black icon image black icon image black icon image
30mm black icon image black icon image black icon image black icon image
35mm black icon image black icon image
40mm black icon image black icon image black icon image black icon image
50mm black icon image black icon image black icon image
60mm black icon image black icon image black icon image
90mm black icon image
black icon image = Available
Size not listed? Please make an enquiry – we may be able to provide it.



Imperial Technical Information & Available Sizes
Thread Gauge 4-40 6-32 8-32 10-24 12-24 1/4″-20
Screw Diameter (in.) .112
.138
.164 .190
.211
.250
Head Diameter max. (in.) .255 .307 .359
.411 .425 .531
Head Height max. (in.) .083 .097 .112
.127 .155
.211
Available Sizes 4-40 6-32 8-32 10-24 12-24 1/4″-20
1/4″ black icon image
3/8″ black icon image black icon image black icon image black icon image black icon image
1/2″ black icon image black icon image black icon image black icon image black icon image black icon image
5/8″ black icon image black icon image
3/4″ black icon image black icon image black icon image black icon image black icon image
1″ black icon image black icon image black icon image black icon image black icon image
1. 1/4″ black icon image black icon image black icon image black icon image
1. 1/2″ black icon image
2″
black icon image = Available
Size not listed? Please make an enquiry – we may be able to provide it.
