Titanium Pozi Countersunk Screws (DIN 965)

Titanium Pozi Countersunk Screws conform to DIN 965 standard / ISO 7046 and feature a Pozi or Cross Recessed drive that provides several benefits compared to standard slotted or Phillips drives. The four notches in between the cross reduce the likelihood of cam-out and allow for higher torque.

Fastened using a Pozi screwdriver or insert bit, these screws host a flat or countersunk head that when installed in a countersunk hole, sits flush within the target housing. This prevents snagging and provides an aesthetically pleasing finish.

Titanium is a great choice for applications that require high corrosion, chemical and saltwater resistance. DIN 965 Titanium Pozi Countersunk Screws are non-magnetic and offer a high strength-to-weight ratio – particularly useful for lightweight applications and electronic equipment.

Manufactured from Titanium Grade 1 and Titanium 15-3 as standard, with other grades available to order. Titanium Pozi Pan Head Machine Screws are also available at Fastenright.

Available in thread sizes M3 to M5 as standard, with lengths ranging from 6mm to 25mm. Our Titanium Fasteners are available from stock or to order, typically with short lead times.

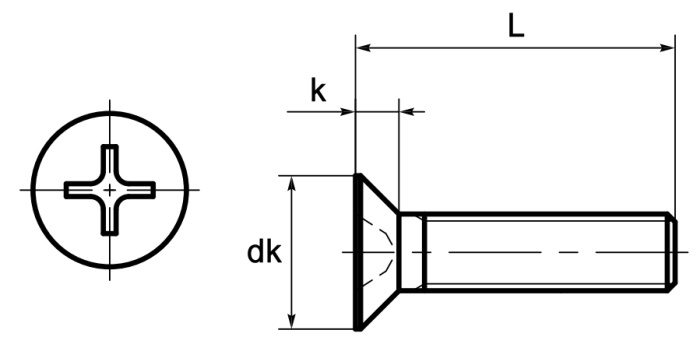

Non-standard sizes, materials and finishes are available to order as specials, including small volume manufacture, modifications and bespoke parts made to drawings – minimum order quantities apply.Titanium Pozi Countersunk Screws Technical Drawing

Technical Data & Availability
Thread Diameter M3 M4 M5
dk (mm) 5.6 7.5 9.2
k (mm) 1.65 2.2 2.5
Available Lengths (L) M3 M4 M5
6mm black icon imagered icon image black icon image
8mm black icon imagered icon image black icon imagered icon image red icon image
10mm black icon imagered icon image black icon imagered icon image red icon image
12mm red icon image black icon imagered icon image red icon image
15mm red icon image red icon image red icon image
20mm red icon image red icon image red icon image
25mm red icon image red icon image
black icon image = Grade 1 Titanium // red icon image = 15-3 Titanium
Size not listed? Please contact us – we may be able to provide it.
Please make full use of our Fastener rotation by left-clicking and dragging to rotate, and using the mouse wheel to zoom in or out.
For display only, visuals may differ.
