TX Drive Furniture Connector Bolts (6 Lobe Torx)

TX Drive Furniture Connector Bolts offer the same low profile, aesthetic, decorative head as regular furniture connector bolts, but with the additional benefit of the TX drive (also known as 6 Lobe Torx drive). This allows higher torque to be applied without damaging the drive head or the tool.

Ideal for all types of furniture and wooden assemblies, including chairs, tables, kitchens, flat-pack furniture and shop equipment.

Use with matching furniture connector caps for an extremely strong fixing and attractive finish.

Manufactured from high-quality 4.8 Grade Steel for durability. Available in Zinc plated as standard for added corrosion protection.

Standard furniture connector bolts are also available in Steel, Brass and Stainless Steel.

Available from Fastenright in a range of sizes with non standard sizes available to order – see stock chart below for full specifications.

Non-standard sizes and materials are available to order as specials, including small volume manufacture, modifications and custom parts made to drawings.

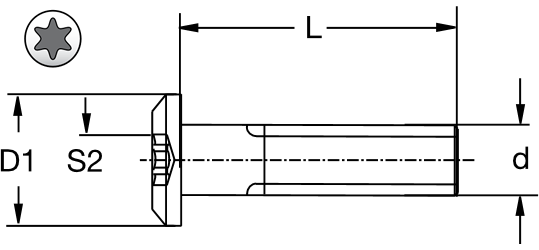

Headed Cross Dowels Technical Drawing

Metric Technical Information & Available Sizes
Thread Diameter D1 (mm) S2 L (mm) Material Availability
M6 15 T30 12 prod-tri-red
M6 15 T30 16 prod-tri-red
M6 15 T30 20 prod-tri-red
M6 15 T30 30 prod-tri-red
prod-tri-red = Grade 4.8 Steel Zinc Plated
Size not listed? Please make an enquiry – we may be able to provide it.
