Vented Socket Button Flange Screw

SKU: VS11 Categories: ,

Vented Socket Button Flange Head Machine Screws have a rounded design with a larger surface area which helps to spread the load across a greater surface area and reduces damage to mating parts. This makes it ideal in decorative applications.

The vent in this screw is to remove trapped gases at the bottom of blind threads, which are often left after voids of air or gas are unable to fully evacuate after a fastener has been threaded into a hole.

These screws have a hexagonal recess and are driven using a hex wrench or an insert bit, making them much more efficient than slotted screw products. This is due to the hex socket drive having more resistance to cam out and their ability to use power drivers.

Vented Socket Button Flange Head Machine screws are made to ISO 7380F, but with an added vent and available in Steel grade 10.9, with other materials such as Stainless Steel, Brass, Aluminium and Titanium available upon request.

They are available from M3 to M16 from Fastenright, with lengths ranging from 6mm to 90mm.

Non-standard sizes, materials and finishes are available to order as specials, including small volume manufacture, modifications and bespoke parts made to drawings. Minimum order quantities apply.

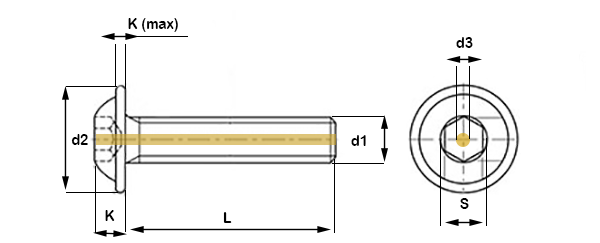

vented socket button flange screw technical drawing

d3 dimension can be to customer specification.

Technical Data & Available Sizes
Thread Diameter (d1) M3 M4 M5 M6 M8 M10 M12 M16
d2 (mm) 7.1
9.4
11.8
13.6
17.8
22.0
26.0
34.0
d3 (mm) 1.2
1.5
1.5
2.0
2.0
3.0
3.0
3.0
K min. (mm) 0.7
0.8
1.0
1.2
1.5
1.8
2.4
2.8
K max. (mm) 1.7
2.2
2.8
3.3
4.4
5.5
6.6
8.8
S (mm) 2.0
2.5
3.0
4.0
5.0
6.0
8.0
10
Pitch (mm) 0.5 0.7 0.8 1.0 1.25 1.5 1.75 2.0
Available Lengths (L) M3 M4 M5 M6 M8 M10 M12 M16
6mm black icon image black icon image black icon image
8mm black icon image black icon image black icon image black icon image
10mm black icon image black icon image black icon image black icon image black icon image
12mm black icon image black icon image black icon image black icon image black icon image
14mm black icon image black icon image black icon image black icon image
15mm black icon image black icon image black icon image black icon image
16mm black icon image black icon image black icon image black icon image black icon image black icon image Call Call
18mm black icon image black icon image black icon image black icon image black icon image black icon image Call Call
20mm black icon image black icon image black icon image black icon image black icon image black icon image Call Call
25mm black icon image black icon image black icon image black icon image black icon image black icon image Call Call
30mm black icon image black icon image black icon image black icon image black icon image black icon image Call Call
35mm black icon image black icon image black icon image black icon image black icon image black icon image Call Call
40mm black icon image black icon image black icon image black icon image Call Call
45mm black icon image black icon image black icon image black icon image Call Call
50mm black icon image black icon image black icon image black icon image Call Call
55mm black icon image black icon image Call Call
60mm black icon image black icon image Call Call
65mm black icon image Call Call Call
70mm black icon image Call Call Call
80mm black icon image Call Call Call
90mm black icon image Call Call Call
black icon image = Available
Size not listed? Please make an enquiry – we may be able to provide it.
