Wood-To-Metal Dowels (Hanger Bolts)

Wood-to-Metal Dowels, often referred to as Hanger Bolts, are primarily designed to hang material from wooden structures – featuring a machine thread on one side of the fastener and a wood screw thread on the other.

Once installed into wood, the suspended material is secured in place with a nut. Hanger Bolts are often used to suspend electrical wiring and sheet metal, while being found in the timber and furniture industry.

They typically host a round, unthreaded shank between both threads – installed into a pilot hole using a special driver bit or by threading two hex nuts onto the machine threaded portion and tightening the outer nut with a hex wrench.

Wood-to-Metal Dowels with Hex Shank, 6 Lobe TX Drive Wood-to-Metal Dowels and Hex Drive Wood-to-Metal Dowels are also available at Fastenright.

Manufactured from Zinc Plated Steel, A2 Stainless Steel and A4 Stainless Steel as standard.

Available now in thread sizes from M3 to M12 as standard, with a wide range of lengths. The length of each side can vary, therefore please contact us for further details.

Non-standard sizes, materials and finishes are available to order as specials, including small volume manufacture, modifications and bespoke parts made to drawings. Minimum order quantities apply.

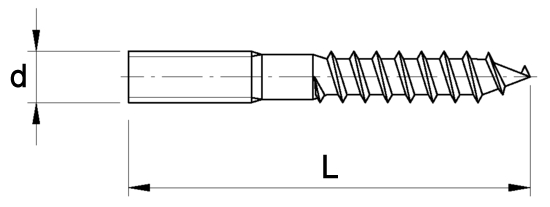

Wood-to-Metal Dowels (Hanger Bolts) Technical Drawing

Metric Technical Data, Available Sizes & Materials
Sizes (d x L) Availability
M3 x 15mm black icon image
M3 x 20mm black icon image
M4 x 20mm black icon image
M4 x 25mm black icon image
M4 x 30mm black icon image
M4 x 35mm black icon image
M4 x 40mm black icon imagered icon image
M4 x 50mm black icon image
M5 x 25mm black icon image
M5 x 30mm black icon image
M5 x 35mm black icon image
M5 x 40mm black icon image
M5 x 45mm black icon image
M5 x 50mm black icon image
M5 x 60mm black icon image
M6 x 30mm black icon image
M6 x 40mm black icon image
M6 x 50mm black icon imagered icon imageblue icon image
M6 x 60mm black icon imagered icon imageblue icon image
M6 x 70mm black icon imagered icon imageblue icon image
M6 x 80mm black icon imagered icon imageblue icon image
M6 x 90mm black icon imagered icon imageblue icon image
M6 x 100mm black icon imagered icon imageblue icon image
M6 x 120mm black icon imagered icon imageblue icon image
M6 x 130mm red icon image
M6 x 140mm red icon image
M6 x 150mm black icon imagered icon image
M6 x 160mm red icon image
M6 x 170mm blue icon image
M6 x 180mm red icon image
M8 x 33mm black icon image
M8 x 40mm black icon image
M8 x 50mm black icon imagered icon imageblue icon image
M8 x 60mm black icon imagered icon imageblue icon image
M8 x 70mm black icon imagered icon imageblue icon image
M8 x 80mm black icon imagered icon image
M8 x 90mm black icon image
M8 x 100mm black icon imagered icon image
M8 x 110mm black icon imagered icon image
M8 x 120mm black icon imagered icon image
M8 x 130mm red icon image
M8 x 140mm red icon image
M8 x 150mm red icon imageblue icon image
M8 x 160mm red icon imageblue icon image
M8 x 180mm black icon imagered icon image
M8 x 200mm red icon image
M8 x 220mm red icon image
M10 x 40mm black icon image
M10 x 50mm black icon image
M10 x 60mm black icon imagered icon imageblue icon image
M10 x 70mm black icon image
M10 x 80mm black icon imagered icon image
M10 x 90mm black icon image
M10 x 100mm black icon imagered icon image
M10 x 110mm black icon image
M10 x 120mm black icon imagered icon image
M10 x 130mm black icon image
M10 x 140mm black icon imagered icon image
M10 x 160mm red icon image
M10 x 180mm red icon image
M10 x 200mm red icon image
M12 x 80mm red icon image
M12 x 300mm red icon image
black icon image = Steel Zinc Plated // red icon image = A2 Stainless Steel // blue icon image = A4 Stainless Steel
Size not listed? Please contact us – we may be able to provide it.



Imperial Technical Data, Available Sizes & Materials
Sizes (d x L) Availability
1/4″ x 11/2″ black icon image
1/4″ x 2″ black icon image
1/4″ x 2 1/2″ black icon image
1/4″ x 3″ black icon image
5/16″ x 1 1/2″ black icon image
5/16″ x 2″ black icon image
5/16″ x 2 1/2″ black icon image
5/16″ x 3″ black icon image
5/16″ x 3 1/2″ black icon image
3/8″ x 3″ black icon image
3/8″ x 3 1/2″ black icon image
black icon image = Steel
Size not listed? Please contact us – we may be able to provide it.
