All Metal Self Locking Nut Turret Type

Turret Type All Metal Self Locking Nut

An all metal self locking turret type nut is a one piece self locking nut.

The locking feature of this locknut is obtained by the two de-pitched self-locking slots found on the turret portion of the nut. When they are installed on the application the slotted turret section reverts to its original form and each slot grips the shank – or thread – of the bolt on opposite sides.

The self-locking feature holds a number of advantages; such as high resistance to vibration and that it is a reusable product. It also has a high resistance to temperature and can be used in volatile environments with both high and low temperature dependent on the material.

These locknuts are stocked in Metric, UNC, and UNF threads with BSW and BSF available to request at relatively short lead times.

Metric all metal self locking turret type nuts are available in Stainless Steel A2-70 & A4-80 and in Steel grades 5 & 8.

UNC & UNF all metal self locking flange nuts are available in Stainless Steel AISI 304 & AISI 316 and Steel grades 5, 8 & 10.

The all metal self locking turret type nuts can also be manufactured to order in Brass, Bronze, and Titanium.

Non-standard sizes, materials and finishes are available to order as specials, including small volume manufacture, modifications and custom parts made to drawings.

Metric Technical Data & Available Sizes
Thread Diameter s (mm) ht (mm) m (mm)
Steel Grade 5, 8 & 10
M2 4.0 4.5 2.3
M2.5 5.0 4.5 2.3
M3 5.5 4.5 2.5
M4 7.0 5.3 2.6
M5 8.0 6.3 3.0
M6 10.0 7.0 3.6
M7 11.0 8.1 4.8
M8 13.0 8.8 4.8
M10 16.0 11.0 6.0
M12 18.0 13.0 7.2
M14 21.0 15.0 8.4
M16 24.0 18.7 11.5
M18 27.0 19.5 11.5
M20 30.0 21.0 12.0
M22 32.0 22.0 12.5
M24 36.0 22.5 14.3
M27 41.0 26.0 16.0
M30 46.0 29.5 16.5
M33 50.0 32.0 18.7
M36 55.0 35.0 18.5
M39 60.0 37.0 20.5
M42 65.0 39.5 23.0
M45 70.0 43.0 24.0
M48 75.0 46.0 25.0
Stainless Steel A2-70 & A4-80
M2 4.0 4.5 2.3
M2.5 5.0 4.5 2.3
M3 5.5 4.5 2.5
M4 7.0 5.3 2.6
M5 8.0 6.3 3.0
M6 10.0 7.0 3.6
M7 11.0 8.1 4.8
M8 13.0 8.8 4.8
M10 16.0 11.0 6.0
M12 18.0 13.0 7.2
M14 21.0 15.0 8.4
M16 24.0 17.0 9.5
M18 27.0 19.5 11.5
M20 30.0 21.0 12.0
Size not listed? Please make an enquiry – we may be able to provide it.

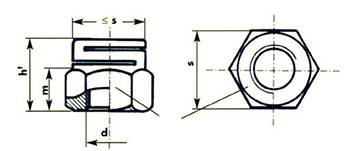

All metal self locking nut turret type diagram



Imperial Technical Data & Available Sizes
Thread Diameter s (mm) ht (mm) m (mm)
Steel Grade 5, 8 & 10 | Stainless 304 & 316
8 – 32 UNC 8.0 5.3 2.6
8 – 36 UNF 8.0 5.3 2.6
10 – 24 UNC 9.0 6.3 3.0
10 – 32 UNF 9.0 6.3 3.0
1/4″ – 20 UNC 11.0 7.5 4.0
1/4″ – 28 UNF 11.0 7.5 4.0
5/16″ – 18 UNC 13.0 8.8 4.8
5/16″ – 24 UNF 13.0 8.8 4.8
3/8″ – 16 UNC 14.0 8.8 4.8
3/8″ – 24 UNF 14.0 8.8 4.8
7/16″ – 14 UNC 17.0 11.0 6.0
7/16″ – 20 UNF 17.0 11.0 6.0
1/2″ – 13 UNC 18.0 13.0 7.2
1/2″ – 20 UNF 18.0 13.0 7.2
9/16″ – 12 UNC 22.0 15.0 8.0
9/16″ – 18 UNF 22.0 15.0 8.0
5/8″ – 11 UNC 24.0 17.0 9.5
5/8″ – 18 UNF 24.0 17.0 9.5
3/4″ – 10 UNC 28.0 21.0 12.0
3/4″ – 16 UNF 28.0 21.0 12.0
7/8″ – 9 UNC 33.0 22.0 12.5
7/8″ – 14 UNF 33.0 22.0 12.5
1″ – 8 UNC 38.0 24.0 13.5
1″ – 12 UNF* 38.0* 24.0* 13.5*
1 1/4″ – 7 UNC 46.0 29.5 16.0
1 1/4″ – 12 UNF 46.0 29.5 16.0
1 1/2″ – 6 UNC 55.0 32.0 17.5
1 1/2″ – 12 UNF 55.0 32.0 17.5
1 3/4″ – 5 UNC
2″ – 4 UNC 75.0 46.0 25.5
2″ – 8 UNF 75.0 46.0 25.5
Parts with * indicate 1″ – 14 UNS available on request
Size not listed? Please make an enquiry – we may be able to provide it.
