Micro Slotted Set Screw Cone Point DIN 553

SKU: MF23 Categories: ,

Micro Slotted Set Screw with a Cone Point are created to DIN 553 standard and feature a single slot in their head for use when being installed with a standard flat blade screwdriver.

A power driver is advised to not be used with a slotted drive as the driver can slip out and cause damage to the surface it is being applied to.

Set screws are used in applications to secure objects together, within or against another object. These screws are ‘headless’, so there is no head projecting past the major diameter, making this a fully threaded fastener.

The slotted drive of this set screw is turned until it meets the inner object, before exerting pressure on the inner object and creating a clamping force.

Micro Slotted Set Screw Cone Point are often referred to as Slotted Grubscrews.

Available as standard in Steel, as well as A2 and A4 Stainless Steel and other materials are available to order.

Sizes range from M1.6 to M3, with larger diameters also available in various materials.

Non-standard sizes, materials and finishes are available to order as specials, including small volume manufacture, modifications and custom parts made to drawings.

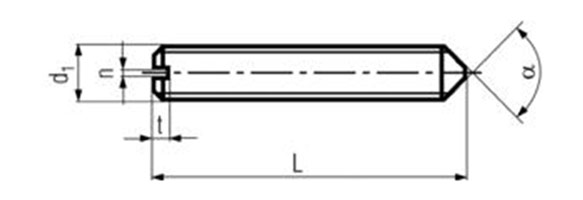

Slotted-Set-Screw-Flat-Din-551Dim

Metric Technical Information & Available Sizes
Thread Diameter M1.6 M2 M2.5 M3
n (mm)
0.25 0.25
0.4
0.4
t (mm) 0.56
0.64 0.72
0.80
Pitch (mm) 0.35 0.40 0.45 0.50
Available Sizes M1.6 M2 M2.5 M3
2mm black icon image black icon image
2.5mm black icon image
3mm black icon image black icon image black icon image black icon image
4mm black icon image black icon image black icon image black icon image
5mm black icon image black icon image black icon image black icon image
6mm black icon image black icon image black icon image black icon image
8mm black icon image black icon image black icon image black icon image
10mm black icon image black icon image black icon image black icon image
12mm black icon image black icon image
14mm black icon image
16mm black icon image
20mm black icon image
black icon image = Available
Size not listed? Please make an enquiry – we may be able to provide it.
